Outdoor P6.6mm Stadium Perimeter LED ScreenLED resolution

Short Description:

1. LED, outdoor SMD LED with good quality
2. Power, high end brand with good performance

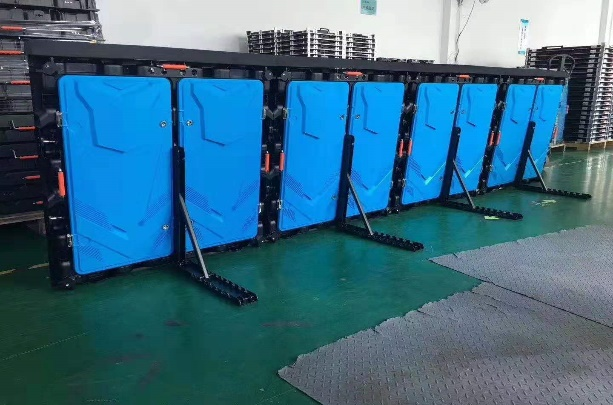

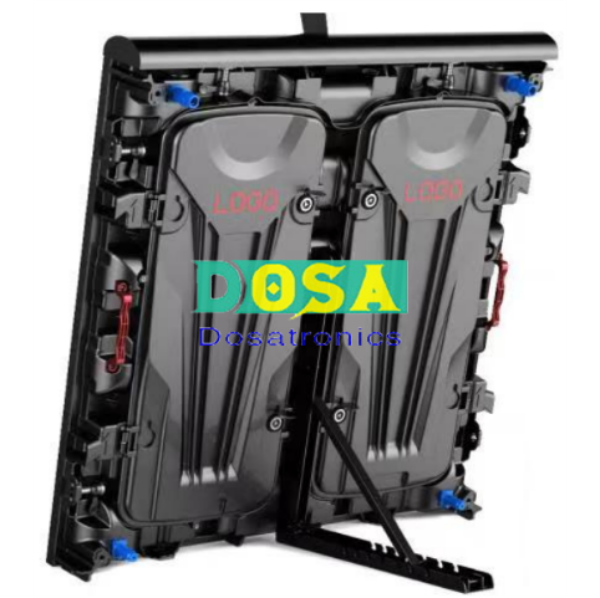

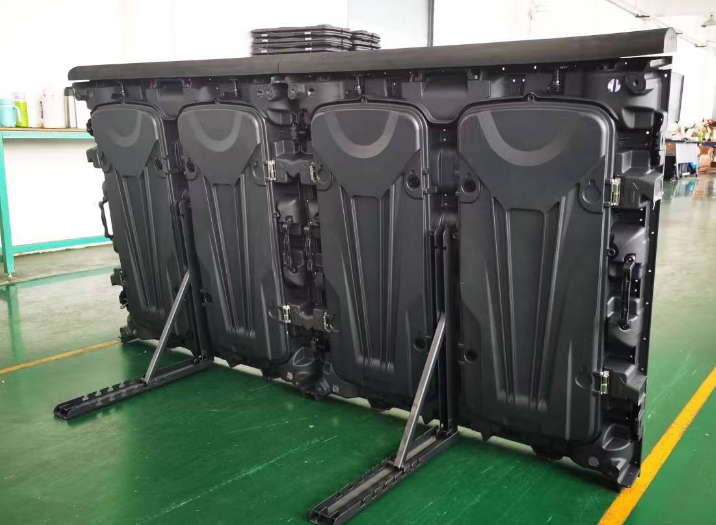

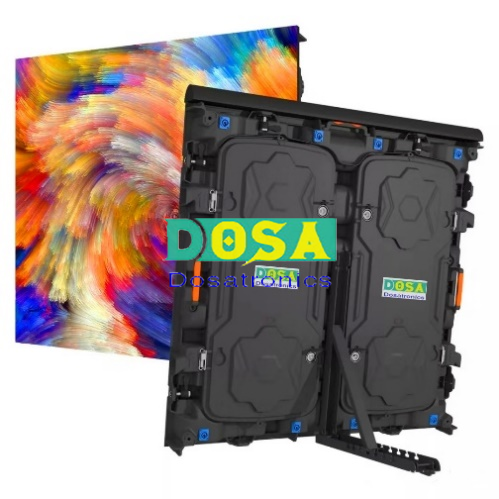

3. Panel, movable waterproof die cast aluminum panel with soft protection face and top similar to the pictures.
4. Power and signal cable, international standard
5. High refresh rate Drive IC with good performance
6. PCB board, anti-fire performance with international standard


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

    Product Details

    A stadium perimeter LED screen is a high-resolution screen that is installed around the perimeter of a sports stadium or arena. It is typically used to display advertisements, sponsor logos, and other promotional content during sporting events. These LED screens are designed to withstand harsh weather conditions and deliver bright and clear images no matter the lighting conditions.Perimeter LED screens can be controlled remotely and can display a variety of content formats, including videos, images, and text. The content displayed on the screen can be changed and updated in real-time, which makes it an effective medium for live broadcasting and updating scores and stats during events.The size of the perimeter LED screen can range from a few inches to several feet tall and wide, depending on the size of the stadium and the viewing distance. The screens are usually made up of multiple LED panels that are fitted together to form a continuous screen.In addition to displaying ads and promotional content, perimeter LED screens can also enhance the viewing experience for fans by providing replays and other information. Overall, stadium perimeter LED screens have become an essential component of modern sports marketing and provide a powerful medium for advertisers to reach a large audience.

    sarfsd(4)
    sarfsd(7)

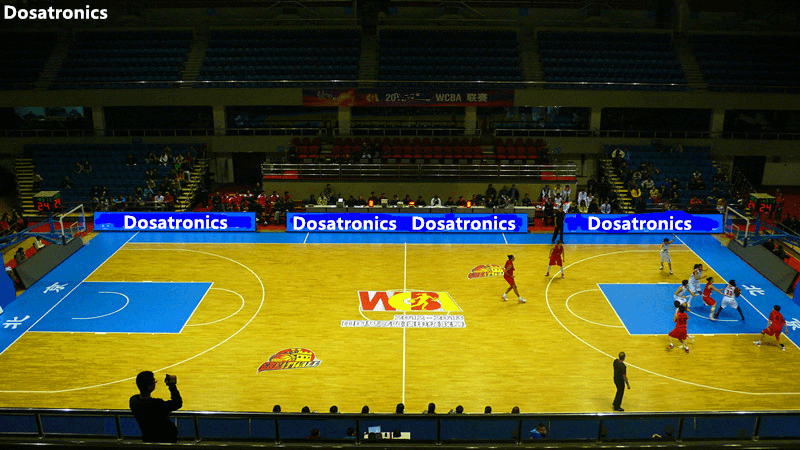

    sarfsd (1)
    sarfsd (6)
    Main specifications

    Pixel density

    22,500 dots/M2

    Brightness

    Over 6000 cd/㎡

    Module size

    320mm*160mm

    Panel size

    960mm*960mm

    View angle

    160°,160°

    Frame/Refresh rate

    60HZ/3840HZ

    Power(Max/ave.)

    600/250 W/㎡

    Input voltage

    AC 11V-220V input, 5V output

    Life span(typical use)

    100,000Hours

    Waterproof level

    IP65 front

    Working Tem.

    ﹣20℃~+50℃

    Working Humidity

    10%~95%

    Display Colors

    64G(under 4096 grey scale)

    Grey scale

    4096 level with software 16bit adjustable

    Color contrast

    10000:1

    Display mode

    true color 1024*768,1280*1024

    Image adjustment

    Contrast, color Tem, brightness adjustable

    Symmetry of screen brightness

    Over 0.9 low-high brightness

    Surface flatness

    1mm difference/even

    Control mode

    Video frequency Synchronous control

    Weight

    50KG/M2

    Signal interface

    AV,DVI,HDMI,SDI,S-Video,YPbPr

    Display media

    Text, animation, graphic, video etc

    Operating system

    WINDOWS 7, WINDOWS 10

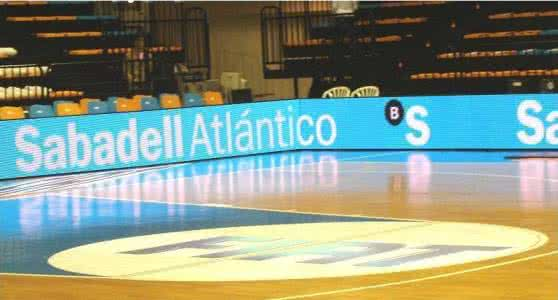

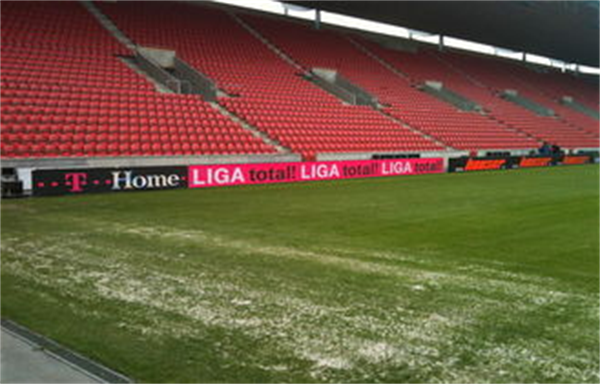

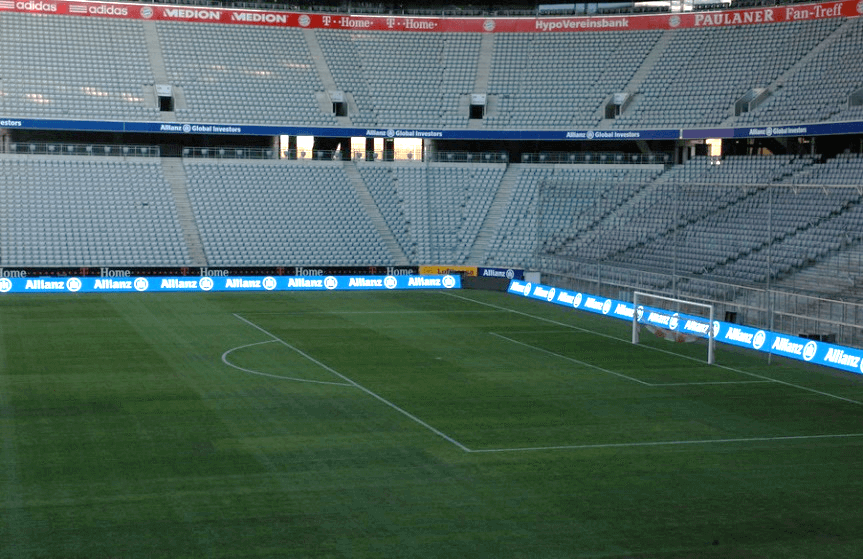

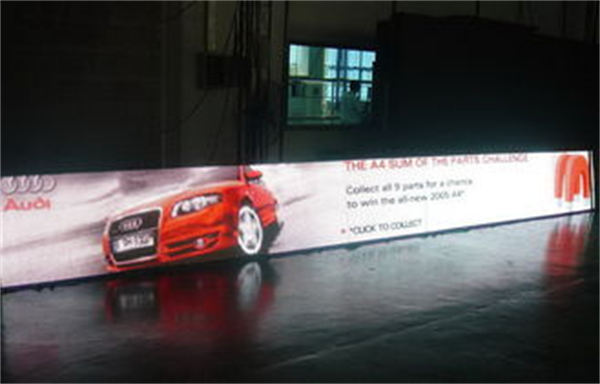

    Some Similar Projects

    sarfsd (8)
    sarfsd (9)
    sarfsd (1)
    sarfsd (2)
    sarfsd (3)
    sarfsd (10)
