Dosatronics Firm Intallation LED screens for Advertising

Short Description:

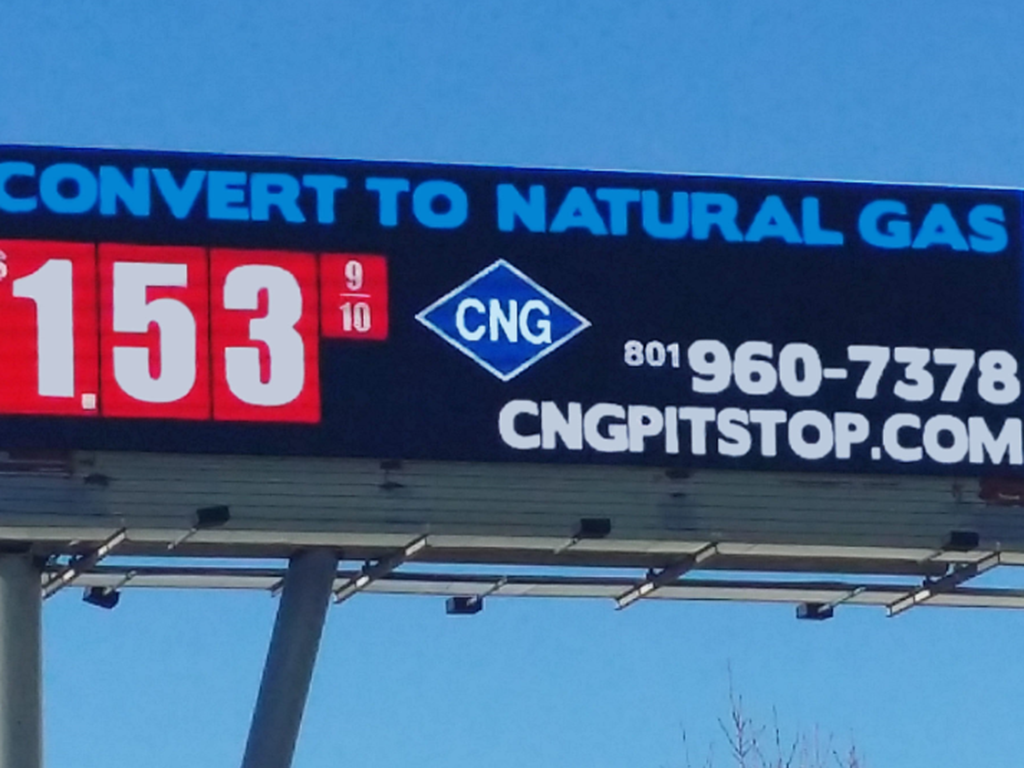

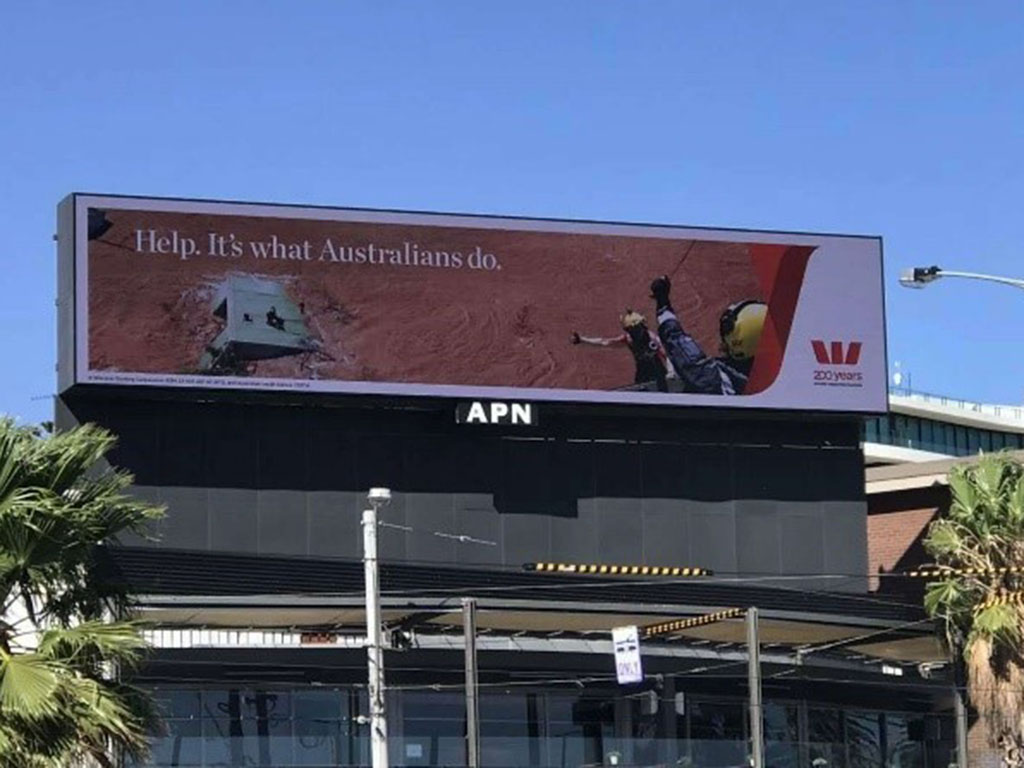

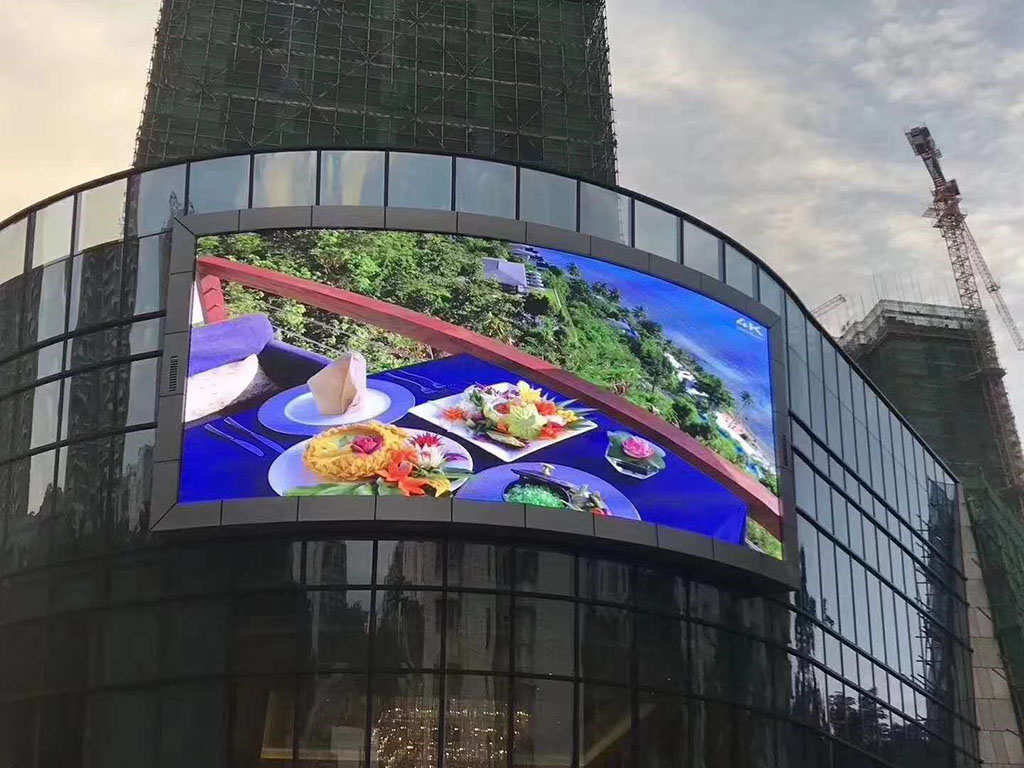

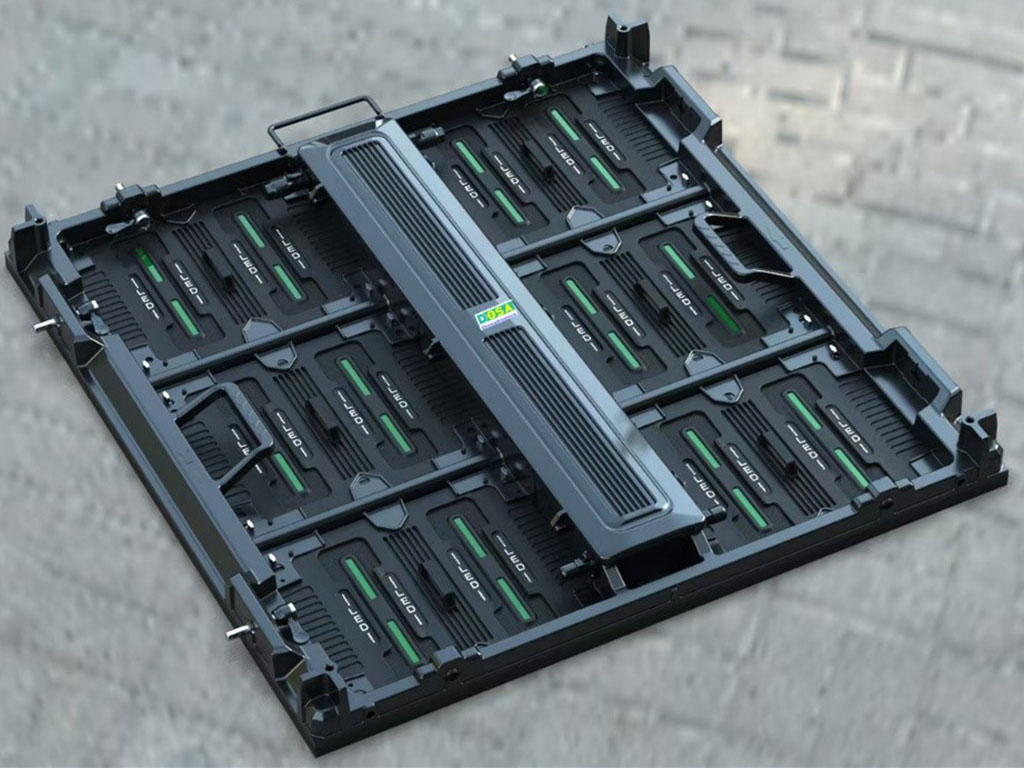

Outdoor LED display P10, P8, P6, P5, P4, P3, P2.5mm is designed die casting alloy of Megensm and Aluminum LED panel. The is panel is die casting cabinet 960mm*960mm. you can also choose steel cabinet 960mm*960mm, my company has good supplier of the raw materia incluidng PCB, IC, LED, power and cabinets. All the LED screens are widely used in lots of applications, especially in city landmark, square, Huge Buildings, Plaza, airport, seaport, train station, bus station, scenic area and resort, Event and stage, banquet, concert, product launch, press conference, sports and stadium etc. Outdoor LED screen need high technology because we need to consider the stability in all kinds of extreme harsh weather, espcially waterprrof lever, high brightness for the sunshine. Also, you must notice the heat radiation to protect the screen itself.

Send email to us

Product Detail

Product Tags

Factory Equipment

Dosatronics designs and produces high tech and advanced LED displays. Especially outdoor LED display for advertising has high brightness, high contrast, high refresh rate. Outdoor P10mm with 960mm by 960mm LED panel has been bought at large quantity for giant LED screens over 500 sqm or event 1000sqm for single LED screen. In the this display and media industry in the world, Dosatronics LED screen, LED signs, LED wall, LED panel products are highly praised by our clients. Through strict Quality management System, Dosatroncis LED displays keep strong stability. Because the price of outdoor P10mm is very cheap. Most of the LED screen producs has over 2 years quality warranty since all components are chosen by strict IQC. For mega LED display, outdoor P10 is your first choice. All these excellent LED screen products will benefit for you very soon.
SMD Machines, Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

Control System Connection
NOVASTAR, LINSN, COLOR LIGHT, HD, KYSTAR, Dosatronics Controls system
Package
All Dosatronics LED displays, LED screens, LED signs, LED walls, LED billboard, LED board products, surely the special shape LED display, are packed with Wooden box, Carton, flight case to ensure the safety in the shipment and transporation.

Warranty and Service

Normally speaking, all LED screen, LED display, LED signs, LED panels, LED billboards made by Dosatronics are equiped with good quality, outstanding performance. Generally, one year to three years quality warranty are widely used. For some special project of LED display in bidding, the givernment requires over three years to five years quality warranty. There is no problem. Dosatronics will choose the best raw material including the brand of LED chip, LED encapsulation, IC, PCB, powers and all other factors. Dosatronics has a very strong team of experienced engineers to instruct, install, debug the LED screens and train clients 24 hours on line. They can also fly all over the world to the clients to teach them hand by hand. Outdoor LED display.

Product	DS-F8	DS-F6.6	DS-F5	DS-F4	DS-F3	DS-F2.5
Pixel pitch	8mm	6.6mm	5mm	4mm	3.076mm	2.5mm
Pixel density	15,625	22,500	40,000	62,500	105,625	160,000
Module size	320mm*160mm
Module pixels	40*20	48*24	64*32	80*40	104*52	128*64
Panel size	960mm*960mm
Panel pixels	120*120	144*144	192*192	240*240	312*312	384*384
Weight	40 KG/Panel
Brightness	6000~1000 nits
Waterproof Level	IP65 front
Refresh rate	1920/3840HZ
